Thermodynamic optimization
Leveraging the odd-carbon effect for sharp melting and low viscosity when heated. This ensures high-efficiency handling by eliminating the thermal penalties of even-chain C10 analogs.
Hydrophobic C9 defense
C9 architecture for superior hydrolysis resistance. Suppressed crystallinity balances molecular packing, ensuring finished resins deliver high strength, flexibility, and transparency.
Low irritation di-acrylates
The safety standard for UV systems. ND provides a low irritation profile for di-acrylate monomers, prioritizing skin safety and EH&S compliance without compromising material durability.
ND from Kuraray: C9 geometry—Precise structural equilibrium
In high-performance polymer synthesis, R&D teams have historically been forced into a binary compromise between processability (C6) and durability (C10/C12).
ND from Kuraray (C9) disrupts this choice by capturing the thermodynamic "sweet spot" via the odd-carbon effect:
- Hydrophobic shield: The 9-carbon backbone provides a significantly higher non-polar volume than C6 (1,6-HDO), blocking water ingress and hydrolytic attack more effectively.
- The process advantage: Due to the asymmetric packing of odd-numbered chains, ND possesses lower lattice energy than even-numbered counterparts. It melts at 46°C drastically lower than C10 (72°C), effectively removing the thermal barrier to entry for high-performance resins.

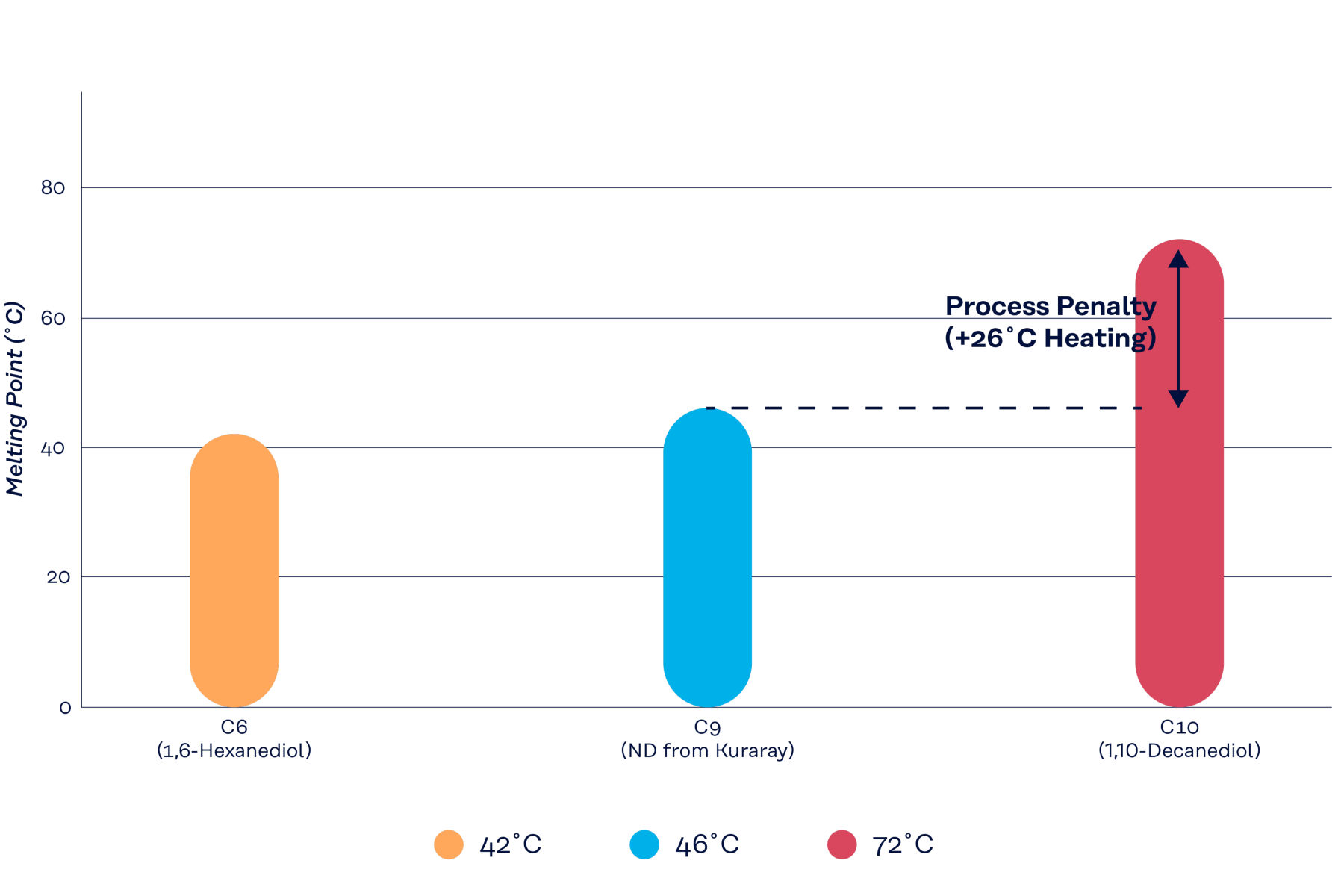

Figure 1: Thermodynamic optimization
ND from Kuraray (C9) captures the ideal melting point (46°C), eliminating the +26°C process penalty required by legacy C10 alternatives to maintain flow.
Engineering impact: High-performance ND applications to resolve industry trade-offs
ND (1,9-nonanediol) serves as a specialized C9 building block, enabling formulators to overcome the physical and regulatory limitations of traditional short-chain diols. Explore how our molecular architecture translates into your specific application.
1. Toner binders: Crystalline polyester resins for “flash-melt” efficiency
The problem: modern printing demands speed and strict energy efficiency. Legacy amorphous toner resins require high fuser temperatures, leading to long printer warm-up times and heavy power consumption that fail eco-Label standards.
The Kuraray’s solution: Sharp-melting crystalline polyester architecture
By polymerizing ND into the polyester resin backbone, chemists engineer crystalline domains that exhibit a dramatic “viscosity cliff” at exactly 46°C.
- Shortened warm-up time: The resin transitions from solid to liquid instantly, facilitating “instant wake-up” for printer hardware.
- Energy reduction: Enables Low-Temperature Fusing (LTF), drastically lowering the energy required by the fuser unit and reducing the carbon footprint of the hardware.
- High-speed adhesion: The ultra-low melt viscosity of the ND-based resin ensures rapid flow and substrate wetting even at maximum commercial printing speeds.

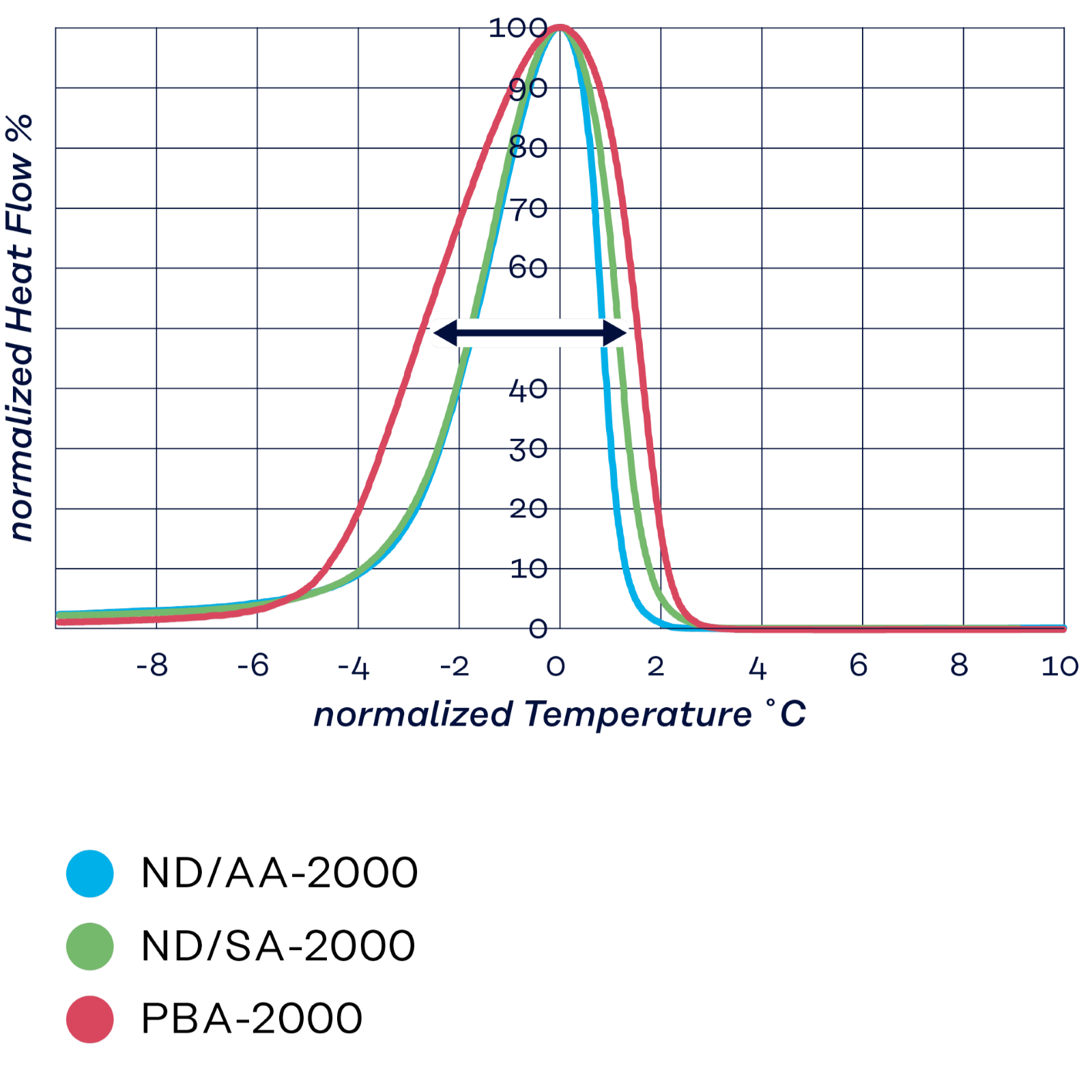

Figure 2: Sharp phase transition
DSC analysis (heat flow) confirms the rapid thermal response and narrow melting range of ND-based resins, essential for "flash-melt" efficiency and low-temperature fusing.
2. ND diacrylate (NDDA) as UV curable monomer: The low-irritation alternative
The problem: The industry-standard reactive diluent, 1,6-Hexanediol Diacrylate (HDDA), is a known severe skin irritant and sensitizer. This creates significant EH&S liabilities, specialized handling requirements, and regulatory risks on the production floor.
The Kuraray’s solution: ND as the high-purity precursor for ND-Diacrylate (NDDA)
- Safety (low irritation): NDDA exhibits a significantly lower Primary Irritation Index (PII) than HDDA, prioritizing worker safety and reducing regulatory labeling burdens.
- Structural flexibility: The longer C9 backbone imparts intrinsic toughness and impact resistance, preventing the brittleness often associated with high-cure-speed UV coatings.
- Toughness without compromise: Provides superior elongation and flexibility in the cured film without sacrificing the fast cure speeds required for high-throughput production lines.
3. Other applications of ND: From molecular logic to material excellence
High-performance intermediates for CASE & resins Beyond polyols
ND provides a versatile foundation across the material spectrum. In polyurethane systems, it functions as a primary polyol or high-efficiency chain extender for demanding CASE applications. Beyond PU, its asymmetric design is the key to mastering resilient polyester resins, high-stability plasticizers, and low-PII diacrylate monomers. Let’s collaborate to architect your specific solution.
Technical DNA: Quantifying the ND advantage
ND from Kuraray provides the foundational data required to transition from legacy linear diols to high-performance, energy-efficient polymer architectures.
| Property | Performance impact | |
|---|---|---|
| Melting point | 46 °C | Enables low-temperature fusing (LTF) in polyester resins. |
| Viscosity (60°C) | 33 mPa·s | Ultra-low viscosity melt provides solvent-like flow without VOC penalties. |
| Hydroxyl value | 700 mgKOH/g | Ensures consistent reactivity and stoichiometric precision in polyester synthesis. |
Architect your next generation of crystalline resins
Stop compromising between melting efficiency and final product durability. Partner with Kuraray to leverage the thermodynamic advantages of C9 chemistry.
