The polyol ecosystem from Kuraray
A synergistic portfolio of polyester (P), polycarbonate (C), and tri-functional (F) polyols, precisely engineered to integrate with MPD-inside technology.

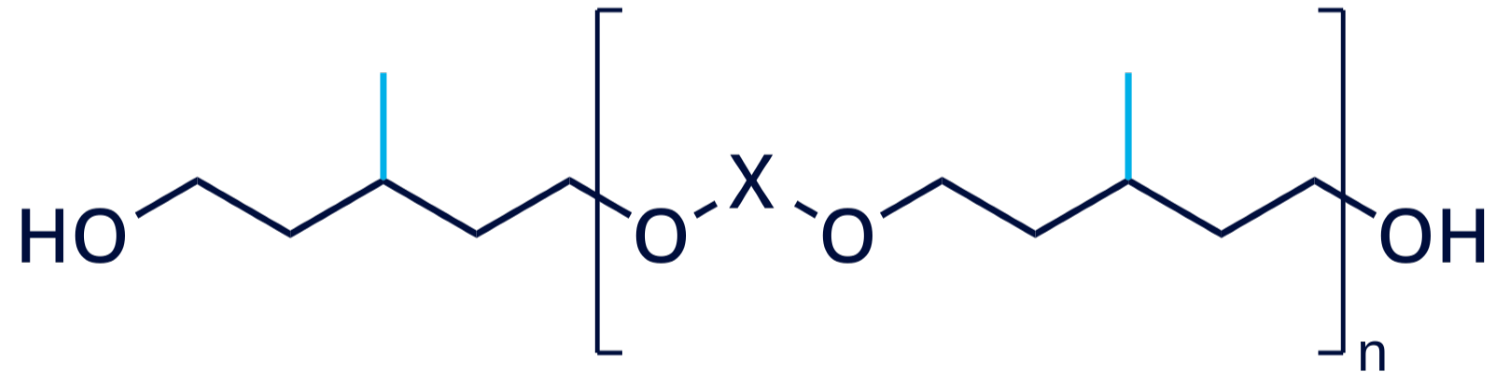

Structural liquidity: MPD-inside
Our branched architecture prevents crystallization, enabling high-solid formulation freedom and precise viscosity control.
X=Polyester or Polycarbonate compound
Engineered resilience: MPD-inside
Superior hydrolysis resistance driven by the hydrophobic shielding of the C3-methyl branch.
The science of resilience: Beyond linear esters
Material failure—manifesting as cracking, peeling, or tackiness—is fundamentally a failure of the chemical backbone. Legacy linear adipate polyols possess a high ester density and a hydrophilic, linear geometry. This configuration leaves ester bonds exposed to water molecules, resulting in rapid hydrolytic cleavage and premature material degradation.
KURARAY POLYOL neutralize this vulnerability through a specific molecular architecture. Utilizing Kuraray’s unique MPD-based backbone, we introduce a methyl branch at the C3 position. This pendant group acts as a physical steric shield, obstructing water molecules from approaching the ester linkages.
We redefine sustainability through resilience.
By extending the service life of the polyurethane system compared to standard polyols, we significantly reduce the Total Cost of Ownership (TCO) and material waste.
In a circular economy, the most sustainable material is the one that does not need to be replaced.

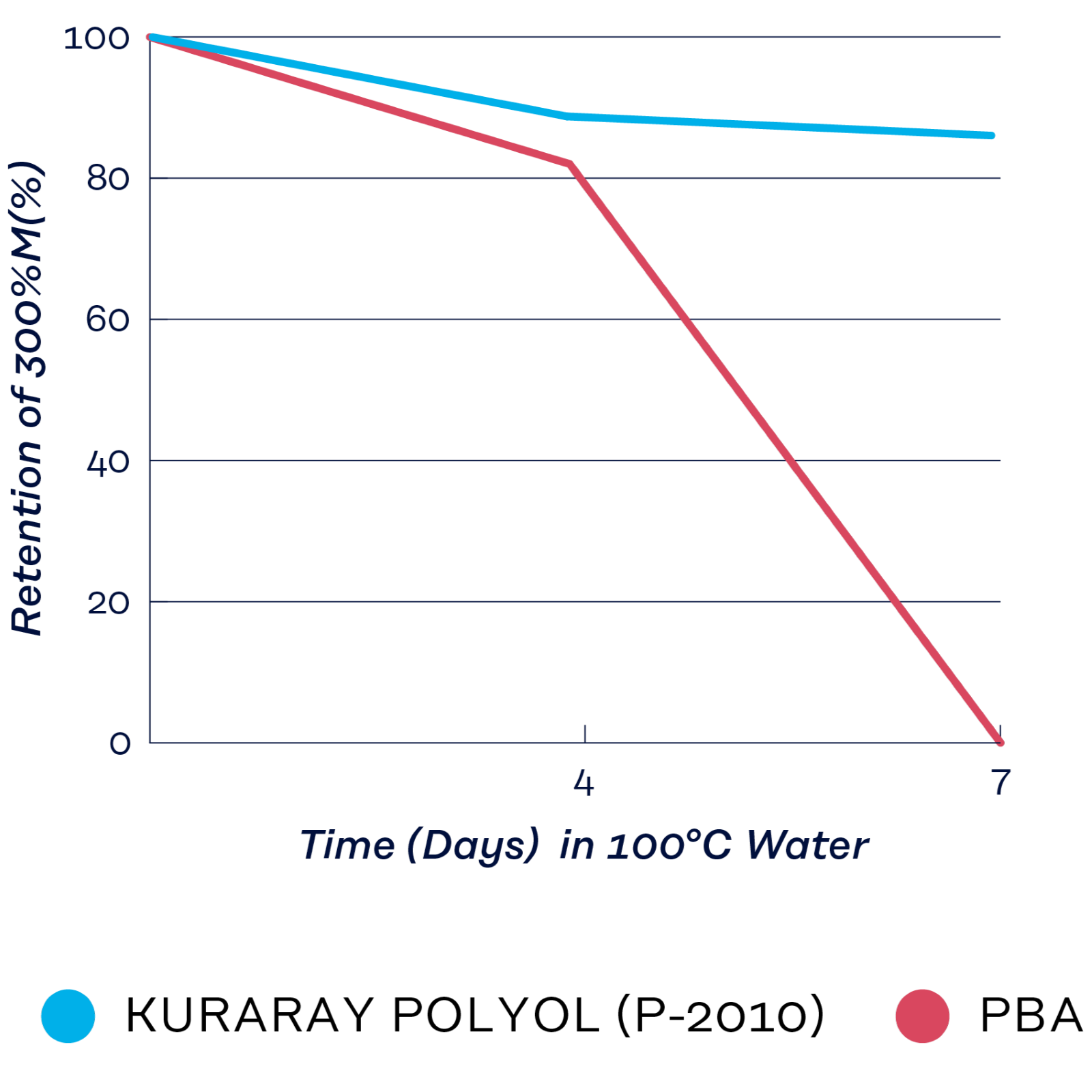

Performance validation: Accelerated aging performance of polyurethane Empirical evidence of long-term molecular integrity under extreme environmental stress.
The following accelerated aging test (100°C water immersion) demonstrates the quantitative impact of the C3 methyl branch on property retention.
Figure 1: Structural stability vs. premature failure in polyurethane applications
At day 7 of extreme hydrolytic stress, KURARAY POLYOL retains the vast majority of its mechanical properties, whereas standard PBA has reached total structural collapse. Resilience is engineered at the molecular level, not added.
Architecture built to endure: KURARAY POLYOL applications
The material performance benchmark: Comprehensive logic
Comparison based on polyurethane performance standards. The MPD-based architecture resolves the traditional trade-offs between chemical resilience, flexibility, and processing ease.
Performance characteristics | Polyether (conv.) | Polyester (conv. PBA) | KURARAY POLYOL | Solid polycarbonate (conv.) | KURARAY POLYOL |
|---|---|---|---|---|---|
Structural flexibility | Exceptional | Standard | Exceptional | Limited | Good |
Low-temp. resilience | Exceptional | Limited | Exceptional | Limited | Exceptional |
Hydrolysis resistance | Good | Very poor | Exceptional | Good | Exceptional |
Acid and alkali resistance | Good | Very poor | Exceptional | Exceptional | Exceptional |
Optical clarity | Good | Very poor | Exceptional | Very poor | Exceptional |
Solvent stability | Very poor | Good | Exceptional | Good | Good |
Thermal stability | Very poor | Exceptional | Exceptional | Good | Good |
Photo-stability (UV) | Very poor | Exceptional | Exceptional | Exceptional | Exceptional |
Interfacial adhesion | Very poor | Good | Exceptional | Limited | Good |
The molecular logic of MPD-inside
To understand why the KURARAY POLYOL P-series and C-series consistently outperform conventional backbones, one must look at the C3-methyl architecture of the MPD molecule. This single branch acts as the structural "engine" that resolves traditional polymer trade-offs through three primary mechanisms:
1. Architectural disruption: The amorphous advantage
Conventional polyols are linear, allowing chains to pack into rigid, semi-crystalline structures. This leads to opacity and low-temperature brittleness.
- The logic: The C3-methyl branch creates a permanent "kink" in the backbone, physically preventing the chains from organizing into crystals.
- The result: The polymer remains in a permanent amorphous state, unlocking exceptional optical clarity and maintaining low-temp resilience, even in extreme environments.
2. The steric shield: Hydrolytic defense by design
In standard resins, chemical linkages are vulnerable to attack by water (hydrolysis).
- The logic: The C3-methyl group provides steric hindrance. It acts as a hydrophobic umbrella, physically obstructing water from reaching the vulnerable chemical bonds.
- The result: This "steric shield" ensures exceptional hydrolysis resistance and stability in acidic or alkaline environments that would typically degrade a standard polyester.
3. Wettability: Enhanced surface interaction
Adhesion is often a struggle for high-performance resins due to their high surface energy and lack of molecular mobility at the interface.
- The logic: The unique asymmetry of the MPD-branch increases the free volume within the polymer matrix, allowing for better chain mobility during the curing process.
- The result: This allows the resin to "wet" the substrate more effectively, creating a superior mechanical and chemical bond (exceptional Interfacial adhesion).
By incorporating MPD-inside, formulators no longer have to sacrifice the toughness of a polyester polyol for the water resistance of a polyether polyol. You get the structural integrity of a high-performance resin with the environmental resilience of a shielded molecule.
Discuss your durability targets Speak with our application engineers to define the optimal polyol grade for your specific hydrolysis and flexibility requirements.
Related resources
Precision engineering starts at the molecular level
End the trade-off between manufacturing efficiency and material resilience. From solvent-level polyurethane dispersions and migration-free soft-TPUs to the specialized requirements of conformal coatings, inkjet, synthetic leather, and CASE applications, the KURARAY POLYOL ecosystem delivers the structural logic required to master your most complex formulation challenges.
